600-275 Pneumatic power chuck

Name: 600275 Pneumatic power chuck
Brand: NTH Cooperated Brand
Price: 1 USD

Brand Name : NTH Cooperated Brand

Model Number : 600-275,

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : T/T, Western Union

Supply Ability : 1000sets/M

Delivery Time : 3 work days available

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Certification : CE

Product name : Pneumatic power chuck

Material : Cast steel

Usage : Fixture/Gripping

Feature : High precision/Stable/High quality

Size : Refer to the specification

Service : ODM/OEM is accpetable

Contact Now

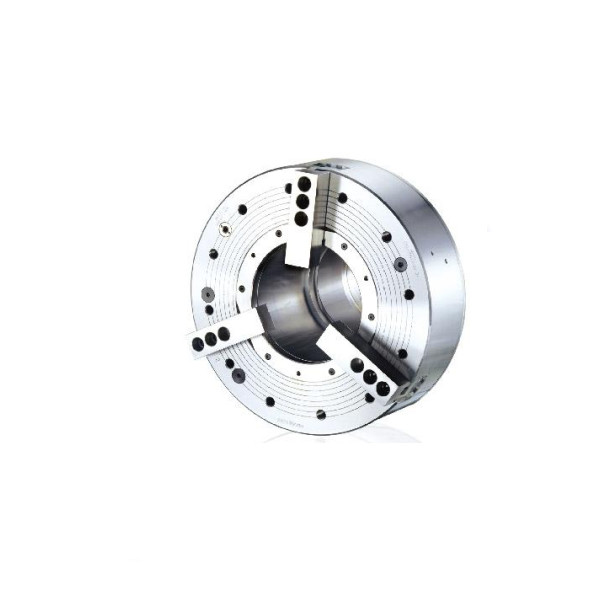

Pneumatic power chuck

Air chuck for external clamping with built-in pneumatic cylinder.
Fast and clamping jaw stroke.
Clamping pressure control.
Clamping stroke control.

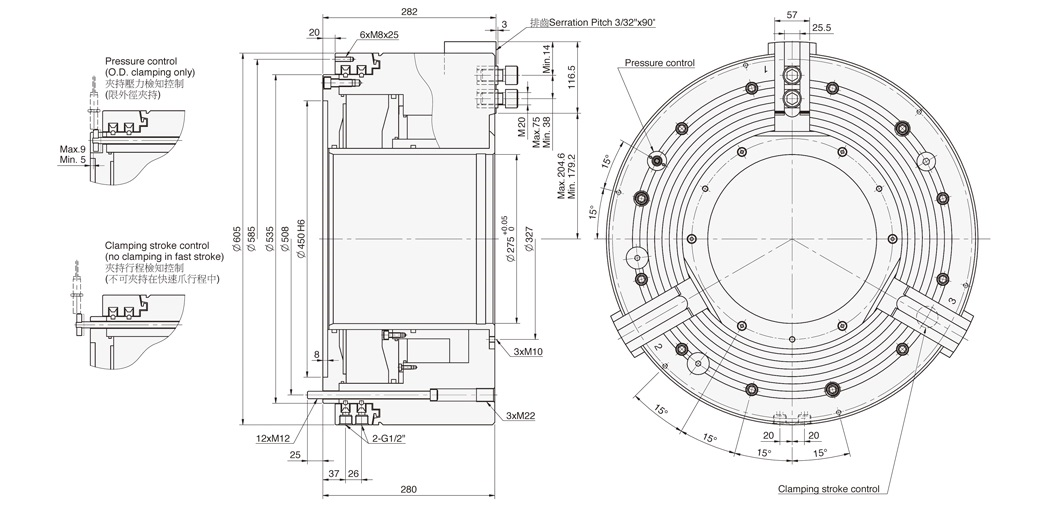

600-275 Pneumatic power chuck

UNIT : mm

SPEC
Model

Through-

Hole

(mm)

Total
Stroke/

Jaw
(mm)

Fast
Stroke/

Jaw
(mm)

Clamping
Stroke/

Jaw
(mm)

Piston Area
(cm2)

Operating

Pressure

Min.-Max.

(bar)

Gripping*
Force
(KN.)

Max.

Speed
(r.p.m.)

Weight
(kg)

Moment
Of Inertia
I
(kg‧m2 )

Air*
Consumption
(L)

600-275

275

25.4

16.9

8.5

954

2-10

180

1100

360

20.6

39.5

*When operating pressure at 6 bar.
