SK 3 jaw strong scroll chuck plain back,2 piece jaws (front and back mounted)

Name: SK 3 jaw strong scroll chuck plain back2 piece jaws front and back mounted
Brand: NTH Cooperated Brand
Price: 1 USD

Brand Name : NTH Cooperated Brand

Model Number : SK-4,SK-6,SK-7,SK-8,SK-9,SK-10,SK-12,SK-16,

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : T/T, Western Union

Delivery Time : 3 work days available

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Certification : CE

Product name : 3 jaw strong scroll chuck plain back,2 piece jaws (front and back mounted)

Material : Cast steel

Usage : fixture/Gripping

Feature : High precision/Stable/High quality

Size : Refer to the specification

Service : ODM/OEM is accpetable

Contact Now

SK types chucks have wider unilization range; hard jaws suitable for heavy cutting; soft jaws suitable for light and precision cutting.
Hard jaws could be used as internal jaws and external jaws.
Gripping accuracy of 0.03mm (0.0012 inch) T.I.R.
The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

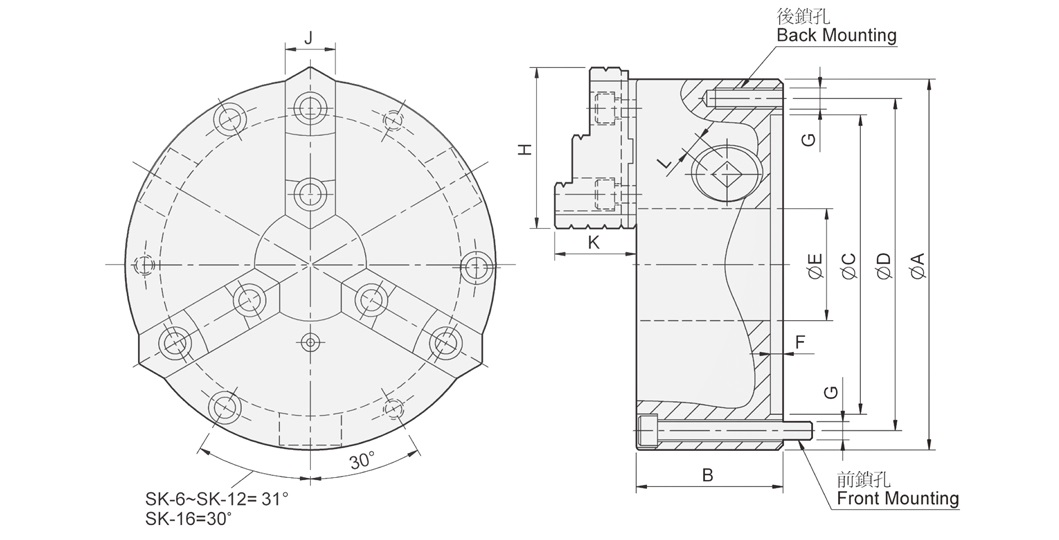

SK 3 jaw strong scroll chuck plain back,2 piece jaws (front and back mounted)

UNIT : mm

SPEC Model	A	B	C	D	E	F	GBack/Front	H	J
SK-4	112	58	80	95	32	4.8	— / 3-M8x65	47	19
SK-6	167	67	130	147	45	5.5	3-M10 / 3-M10x70	72	26
SK-7	192	76.5	155	172	58	5.5	3-M10 / 3-M10x80	81.2	28
SK-8	200	76.5	160	176	58	5.5	3-M10 / 3-M10x80	82	28
SK-9	232	84	190	210	70	6	3-M12 / 3-M12x90	90.9	32
SK-10	273	87	230	250	89	8	3-M12 / 3-M12x90	100.5	35
SK-12	310	96	260	285	105	7	3-M12 / 3-M12x110	114.5	40
SK-16	405	122	345	375	160	8.7	— / 6-M14x130	148.6	50

SPEC Model	K	L	Allowable Handle Torque (kgf‧m)	Gripping Force (kgf)	Max. Speed (r.p.m.)	Weight (kg)	Moment Of Inertia I (kg‧m2)	Gripping Range O.D. Range I.D. Range
SK-4	31.6	8	4.5	1200	2500	3.8	-	Ø3-Ø95 / Ø29-Ø84
SK-6	40.2	10	9	2200	2000	9	0.03	Ø4-Ø160 / Ø55-Ø150
SK-7	42	11	11	2500	2000	13.8	0.06	Ø8-Ø180 / Ø62-Ø170
SK-8	42	11	11	2500	2000	15.5	0.07	Ø8-Ø190 / Ø68-Ø180
SK-9	51.2	12	15	3000	2000	22	0.16	Ø11-Ø220 / Ø70-Ø210
SK-10	56.7	12	19.5	4000	1800	29.7	0.26	Ø12-Ø260 / Ø80-Ø250
SK-12	56.8	14	21	4200	1800	43.5	0.58	Ø15-Ø300 / Ø90-Ø290
SK-16	76.1	15	25	4500	1500	98	1.72	Ø30-Ø380 / Ø110-Ø360
